Distilling equipment is essential to the production of whiskey, and the selection and configuration of distilling equipment will directly affect the flavor, aroma, and quality of the final whiskey. Whether you are a home brewer or a commercial producer, choosing the right equipment is essential to obtaining high-quality whiskey. This quick guide outlines the key components of distilling equipment and their importance in whiskey distilling.
Basic Process of Whiskey Brewing
- Malting: Barley is one of the key ingredients of malt whiskey and must be specially processed to extract its sugars. At this stage, the barley is soaked in water and allowed to germinate. The germination process is over when the barley is dried in a kiln.
- Mash: After the malting process is complete, the dried barley is ready for mash. During the mash process, enzymes convert starches into sugars. Once the sugars are extracted, the liquid (now called wort) can enter the next stage and become alcohol.
- Fermentation: During the fermentation process, the wort is transferred to a large wooden container called a fermenter. Here, yeast is added. Mixing the wort with yeast converts the sugars into alcohol, called “fermentation liquid”. This process takes 48-96 hours and can produce a variety of flavors depending on the fermentation time and the type of yeast strain. The alcohol content of the liquid before distillation is about 7-10%.
- Distillation: The lees pass through a still, usually a “lees still” and a “spirit still”. The still is usually made of copper and helps remove unwanted odors and flavors from the spirit. The liquid is heated and refined, allowing the process to happen again. Most whiskeys are distilled twice, but some are distilled three times. At the end of this stage, a high-quality spirit is produced.
- Maturation: A key element of the production process is aging. Almost all whiskeys are aged in wooden containers called casks, which are usually made of oak. The casks give the whiskey its color and other characteristics. The casks are stored in warehouses so that the whiskey can age.
- Bottling: After the whiskey has matured, it has an alcohol content of at least 40%. The whiskey can be cold-filtered to prevent it from becoming cloudy when ice is added.

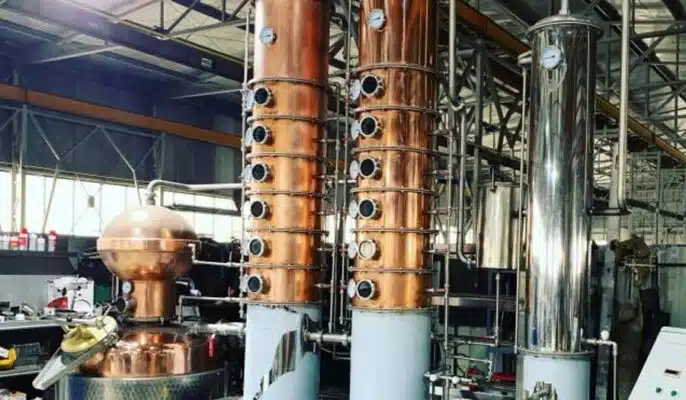

Types of distilling equipment required for distilling distilleries
Distillery heat source
The heating source is used to heat the fermented liquid in the distiller, which is usually divided into electric heating and steam heating.
- Electric heating: The electric heating system is simple and easy to use, can accurately control the temperature, and is suitable for small distilleries. However, its cost is high, and long-term use will increase electricity bills.
- Steam heating: The steam heating system uses a boiler to generate steam and sends the steam into the distiller through a pipe. The advantage of this method is uniform heating and is suitable for large-scale production, but it requires more complex facilities and maintenance.
Distiller
- Pot still: The pot still is usually made of copper, with a round shape and a long neck on the top. This design helps to produce more contact with the steam during the distillation process, thereby effectively removing impurities and retaining the flavor of the wine. Suitable for small distilleries, which can usually only process limited raw materials at a time, can retain more flavor components, and are suitable for brewing single malt whiskey.
- Column still: Column stills are usually used for large-scale production. Their structure is more complex and consists of multiple vertical distillation columns. It can achieve 24-hour uninterrupted production and is suitable for large-scale brewing. Brewing is efficient, bringing the alcohol concentration to the desired level in a short time.
Condenser
The condenser is responsible for cooling the vapor produced in the still back to a liquid state. It usually consists of a coil or pipe through which cold water circulates, causing the vapor to condense and collect as distillate. The condenser can be passive (using ambient air or water) or active (using a coolant such as glycol), depending on the size and design of the still.
Fermenter
The fermentation vessel is where the fermentation process takes place, converting sugars into alcohol and other compounds. For a home brewer, the fermentation vessel might be a simple barrel or keg, while for a commercial producer, it might be a larger tank. The fermentation vessel should be made of food-grade materials and equipped with airlocks to allow gases to escape while preventing contamination.
Wort Tub
The wort tub is used to mix water and grain or other fermentable ingredients to make wort. It may have a false bottom or other filtration system to separate the liquid (wort) from the solids (spent grain) after the wort has been processed. Wort tubs are essential to the production of whiskey, bourbon, and other grain spirits.
Other auxiliary equipment
- Alcohol meter: An alcohol meter is used to measure the alcohol concentration of distilled liquid to ensure that the produced whiskey meets the standards.
- Transfer pump: A transfer pump is used to transfer fermented liquid from the fermentation tank to the distiller, or to transfer distilled liquid to the maturation barrel.
- Storage tank: Storage tank is used to store fermented liquid, distilled liquid, etc., and is an important transfer link in the winemaking process.
How to choose whiskey brewing equipment?
Production scale
Determine the scale of production according to your needs, whether it is personal use, small-scale hand-distilling, or large-scale commercial production. Small breweries may prefer to use pot stills to ensure the diversity and uniqueness of flavors. Large breweries are more suitable for column stills for efficient production. Choose equipment that can meet your production volume and growth forecasts.
Equipment budget
The investment cost of the equipment is also an important consideration. Make a budget for purchasing distillation equipment and consider the upfront costs and long-term operating expenses. Although high-quality equipment may require a higher initial investment, it can provide better performance, efficiency, and durability over time.
Material selection
Choose durable and suitable materials for brewing, usually stainless steel and copper are common choices. Look for distillation equipment made of high-quality materials such as stainless steel or copper, which are durable, corrosion-resistant, and easy to clean. Avoid equipment made of inferior materials, as inferior materials may affect the quality and safety of spirits.
Automation level
Choosing the right level of automation depends on your production scale, budget, and technical needs. Highly automated equipment can fully automate the distillation process, from heating to cooling to separation and collection of finished products, with less manual intervention. A high level of automation can improve efficiency and consistency, but the initial investment and maintenance costs may be high.
Supplier support
Supplier support is very important when choosing whiskey brewing equipment. Does the supplier provide timely technical consultation and troubleshooting services to ensure the normal operation of the equipment? Does the supplier provide operation training as well as installation, troubleshooting, and other services? Micet group is a good choice to help you solve problems.
Whiskey Distilling Equipment Maintenance
- Regular Cleaning: Clean and disinfect distilling equipment regularly to prevent contamination and odors of spirits. Follow the manufacturer’s recommended cleaning procedures and use food-grade cleaners.
- Safety Precautions: When operating distilling equipment, follow safety guidelines and regulations, including proper ventilation, fire prevention measures, and personal protective equipment such as gloves and goggles. Be aware of the risks associated with handling hot liquids, flammable materials, and pressurized systems.
- Routine Maintenance: Regularly inspect distilling equipment for signs of wear, damage, or malfunction, and perform routine maintenance tasks such as lubrication, seal replacement, and calibration as needed. Resolve any issues promptly to prevent downtime and ensure optimal performance.
FAQ
What are the main components of whiskey distillation equipment?
It mainly includes a distiller (boiler or column), condenser, fermenter, heating system, storage tank, and control system.
What factors should be considered when choosing a distiller?
It is necessary to consider capacity, material (such as copper or stainless steel), design type (boiler or column), and distillation efficiency.
How to ensure the safety of the distillation process?
Ensure that the equipment complies with local regulations, is regularly maintained and inspected, and is equipped with necessary safety facilities (such as pressure relief valves).
How important is the cleaning and maintenance of the equipment?
Regular cleaning and maintenance of equipment is the key to ensuring product quality and extending the service life of the equipment.
What is the importance of supplier support?
Choosing a supplier that provides good after-sales service and technical support can help solve problems in the use of equipment and ensure smooth production.
