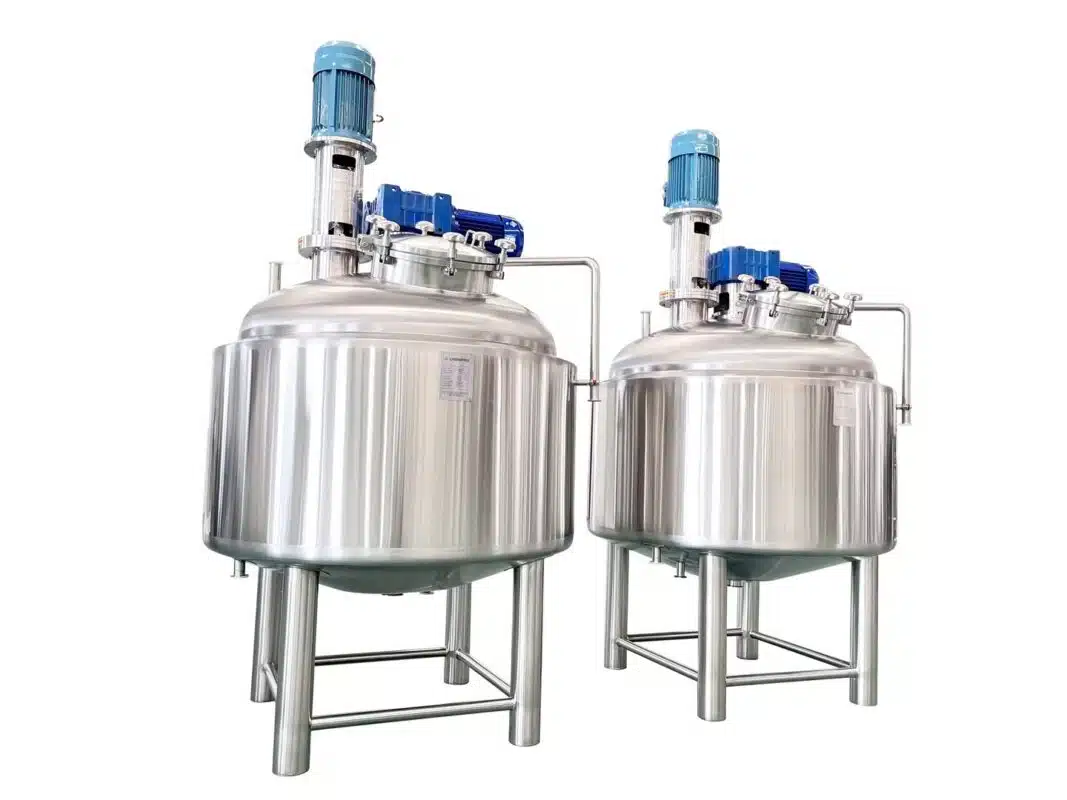

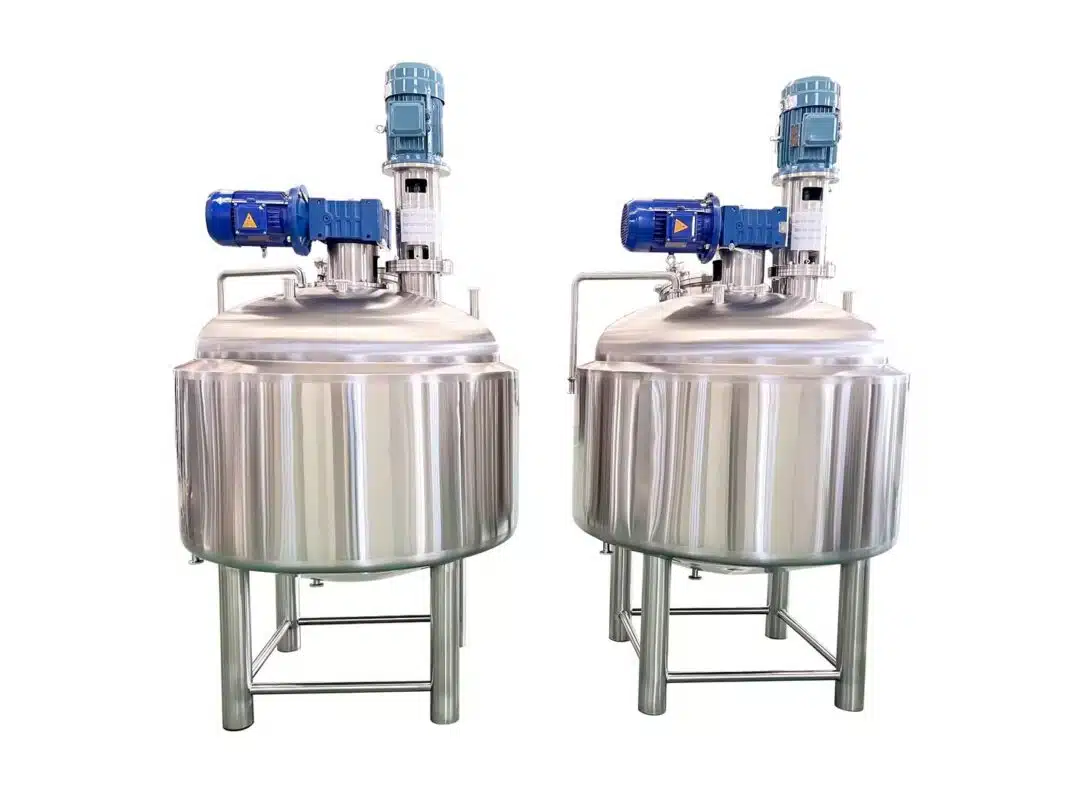

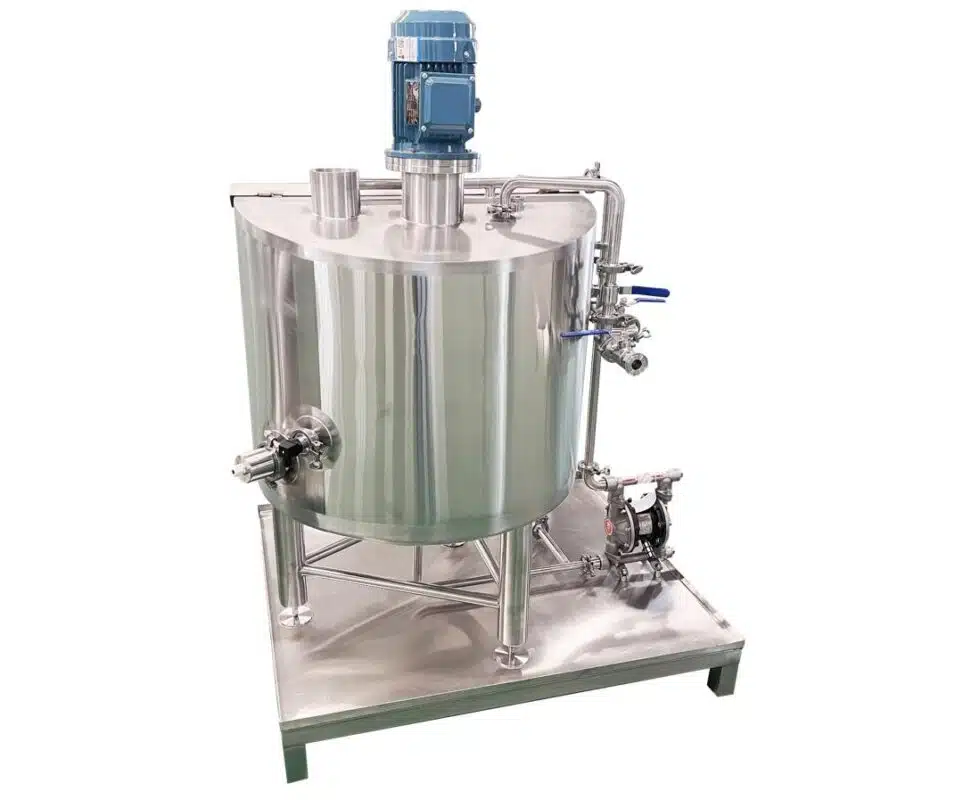

Micet Group Industrial mixing tank is widely used in the production of food, beverages, wine, drinks&juice, diary and chemical and cosmetics products. It adopts advanced mixing technology and control system, which can quickly achieve the mixing and stirring of materials. Stainless steel mixing tank is normally composed of the mixing tank body, upper and lower ends, agitator, feet, transmission devices, shaft sealing devices, etc., the heating or cooling devices can be added as needed, and it can be single wall or jacketed. Micet Group can design different mixing tanks as per your requirements, both single tank and turnkey solution design with pumps, piping and control.
Mixing tanks are widely used in various industries for a range of applications that require the blending, mixing and agitation of different substances. The structure and configuration could be made according to customers’ requirement based on different product production process. According to different product mixing needs, the agitator could be paddle type, anchor type, frame type, screw type, etc. The shaft sealing device is optional from mechanical seal, packing seal and labyrinth seal. Different functions of mixing tank also have different configuration, check technical details in the right table.
|
Beschikbaar volume |
50 LITER - 20.000 LITER |
|
Plaatdikte |
3m-6mm volgens uw vereiste |
|
Verwarming |
Elektriciteit (olie of water), stoomverwarming, circulatieverwarming (warm water of olie) |
|
Materiaal |
SUS304/SUS316L voedselveilig materiaal |
|
Type mixer |
Homogenisator of roerwerk (anker, frame, roerder met zijschraper, blad, waaier) |
|
Afdichtingsoptie |
Sanitaire enkelwerkende mechanical seal/dubbele mechanical seal met koelsysteem |
|
Koeling |
Ijs waterkoeling / koud water koeloplossing |
|
Structuur |
Enkele laag, binnenlaag+jas, binnenlaag+jas+isolatie |
|
Type tank |
Verticaal type of Horizontaal type |
|
Polijsten |
Binnenzijde gepolijst en buitenzijde gepolijst om te voldoen aan sanitair verzoek |
Ze worden gebruikt in de farmaceutica, voeding en dranken, chemie, petrochemie, cosmetica en nog veel meer.
Regelmatig onderhoud omvat schoonmaken, controleren op slijtage, zorgen voor de juiste kalibratie en eventuele mechanische problemen oplossen.
Houd rekening met factoren zoals het type materialen dat gemengd wordt, de gewenste consistentie, de batchgrootte en specifieke procesvereisten.
Common materials include 304 stainless steel and 316 stainless steel. 304 stainless steel is suitable for general chemical and food applications, while 316 stainless steel has better corrosion resistance and is suitable for more harsh environments, such as chloride-containing media.
When selecting the capacity, the following factors should be considered: the amount of material to be processed, the scale of production, the mixing effect, and the space limitation. Generally, it is recommended to select a mixing tank with a slightly larger capacity than the actual required capacity to ensure good mixing effect and operational flexibility.
The sealing performance of the mixing tank is mainly ensured by sealing rings, gaskets or welding. Check the status of the sealing parts regularly to ensure there is no leakage.
During installation, ensure that the mixing tank is placed stably and avoid tilting. During operation, follow the equipment manual, avoid overloading, and regularly check the working condition of the agitator and the overall safety of the equipment.
