우루과이로 배송된 800L 양조 장비

The 800L brewing equipment is manufactured using food grade 304/316 stainless steel as the raw material through high-precision manufacturing techniques. Each tank in the equipment is pressure tested for 48 hours before shipment. Once the test is passed, it is shipped to the customer in Uruguay and the results are inspected by the customer. The 800L microbrewery system is typically used by breweries that are much smaller and independently owned than large corporate breweries. These breweries are often characterized by a focus on flavor and brewing techniques, and 미셋 그룹 can provide customized turnkey solutions that include installation, commissioning, and training services. If you don’t see what you are looking for, you can contact us directly. Our engineers will provide you with a turnkey solution and pricing within 24 hours.

800L brewing equipment specifications

800L Brewing Equipment Basic Configuration

Malt milling device

• Grain adjustable rolling crusher
• Flexible or steel auger to lift milled grains directly to the brewhouse tanks

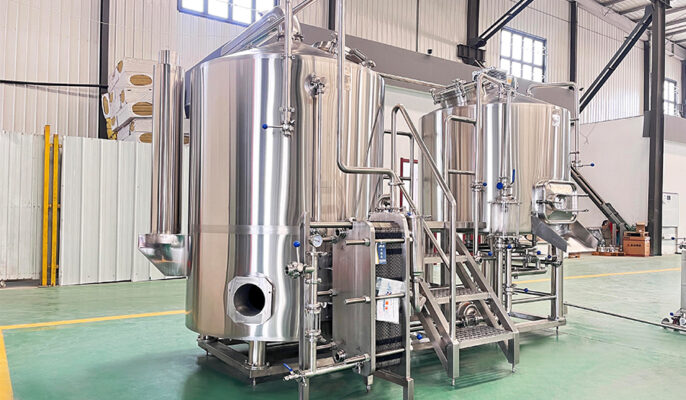

Brewery unit

• brewhouse/filtration tank, boiling/whirlpool tank 2-tank combination
• Special combinations of hot and cold water tanks optional
• Precise design for infusion or decoction brewing methods
• Stainless steel is popular for its ease of maintenance and cleaning.
• Two-stage or single-stage heat exchangers for wort cooling
• 모든 스테인리스 스틸 통합 작업 플랫폼
• 위생적이고 효율적인 맥아즙 펌프
• All piping and fittings

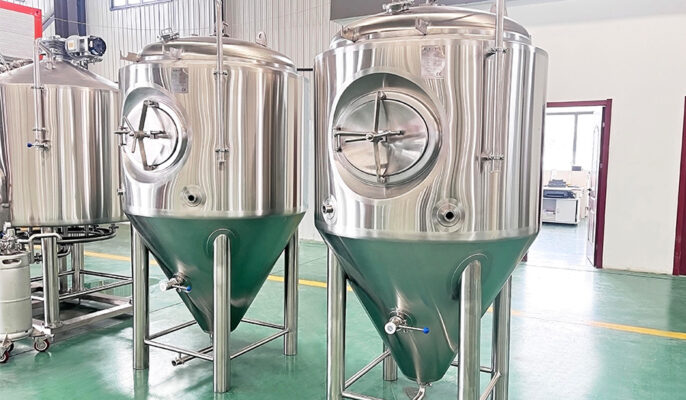

발효 탱크 unit

• Standard stainless steel conical cylindrical fermenters
• single size or double size as brewery typically used in microbreweries
• The number of tanks is precisely calculated from the fermentation cycle for a wide range of beers
• Includes all manholes, valves, pressure gauges, fittings, etc.

밝은 탱크 unit

• Standard stainless steel conical cylindrical fermenters
• single size or double size as brewery typically used in microbreweries
• The number of tanks is precisely calculated from the fermentation cycle for a wide range of beers
• Includes all manholes, valves, pressure gauges, fittings, etc.

Cooling unit

• Insulated glycol tanks with or without copper coils for glycol liquid holding and mixing
• High-efficiency chiller or refrigerator with Freon for providing cooling energy
• sanitary centrifugal pumps for glycol water circulation between tank and heat exchanger
• includes all piping, fittings, insulation

양조 장비 장점

1. We can customize the equipment design as per customer brewing method and brewing beer types can make beer highest to 33 Plato.
2. All Construction uses high-quality SUS 304 food-grade stainless steel, all pipes are SUS304, perfect 3mm inner shell and 2mm outer shell.
3. All tanks are equipped with specially designed jackets to ensure heating and cooling efficiency. Both cone top and shell bottom have jackets, exchanging areas are big enough.
4. The headspace of our tanks is much bigger, the total volume does not include the cover headspace.
5. 100% TIG welding process to weld the tank, jackets welding are all full welding by water, uniform dimpled cooling jacket to ensure no leaking and long life, welds passivated!
6. Our polishing is overall mirror polishing, polishing 6 times to make Ra 0.4um mirror finish, can clean 360° without dead ends.
7. 재킷 테스트는 공기와 물로 12시간, 재킷 테스트 압력은 5Bar, 내부 쉘 테스트 압력은 4Bar이며 포장 전에는 48시간의 수압 테스트도 진행합니다.
8. Strict quality control and process inspection & testing system, which all the testing records will show on our data late with the tanks shipping, with checking the list and serial numbers to track. 9. We insist on a high-end product line to manufacture our tanks, all components like chiller, exchanger, steam boiler, and Schneider/ABB electronics control systems all adopt international brands to ensure quality and convenient after-sales.

Get 800L Turnkey Brewery Price

If you want to know more about 800L brewery equipment, you can contact Micet Group directly. Our engineers will provide you with professional customized services and installation after-sales support to help you complete your brewing dream.
